Australia Standard hot model double glass aluminum bifolding door

FOB Reference Price:Get Latest Price
US $80-200 / Square Meter | 10 Square Meter/Square Meters Australia Standard hot model double glass aluminum bifolding doo (Min. Order)
Supply Ability:
60000 Square Meter/Square Meters per Year double glass aluminum bifolding door
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Superhouse (aluminum Bifolding door)
Model Number:
SP100T-aluminum Bifolding door
Open Style:
Folding
Position:
Commercial
Surface Finishing:
Finished
Type:
Accordion Doors
Door Material:
Aluminum Alloy
Standard:
AS2047
Glass Standard:
AS2208 & ANSIZ97.1
Structural glazing:
AS1288
Extrusion alloys:
6063-T5/T6 thermal/no-thermal break profile
Hardware:
Australia doric;German Siegenia/Roto; China Top brand
Surface finish:
powder coated meet AS 3715, Electrophoresis
Color:
customzied(matt black;white;ultra silver;clear anodized, etc)
Water penetration:
450 pa
Ultimate strength:
4500 pa
Guarantee Period:
10 Years
Packaging & Delivery
Packaging Details
packing for aluminum Bifolding door:
1.Protective tape protects frames from scratches;
2.Keep windows or doors fixed on iron pallets;
3.Tie up windows or doors on the iron pallets with plastic belts;
4.PE films to keep away from sea water;
5.Fill in the space between each two iron pallets by air bags;
6.Tie up iron pallets in container with plastic belts.
Our packages will ensure the windows arrive at project jobsite in good conditions,pls contact us for details of packages
Delivery Time
Shipped in 38 days after payment
Video Description
Product Description

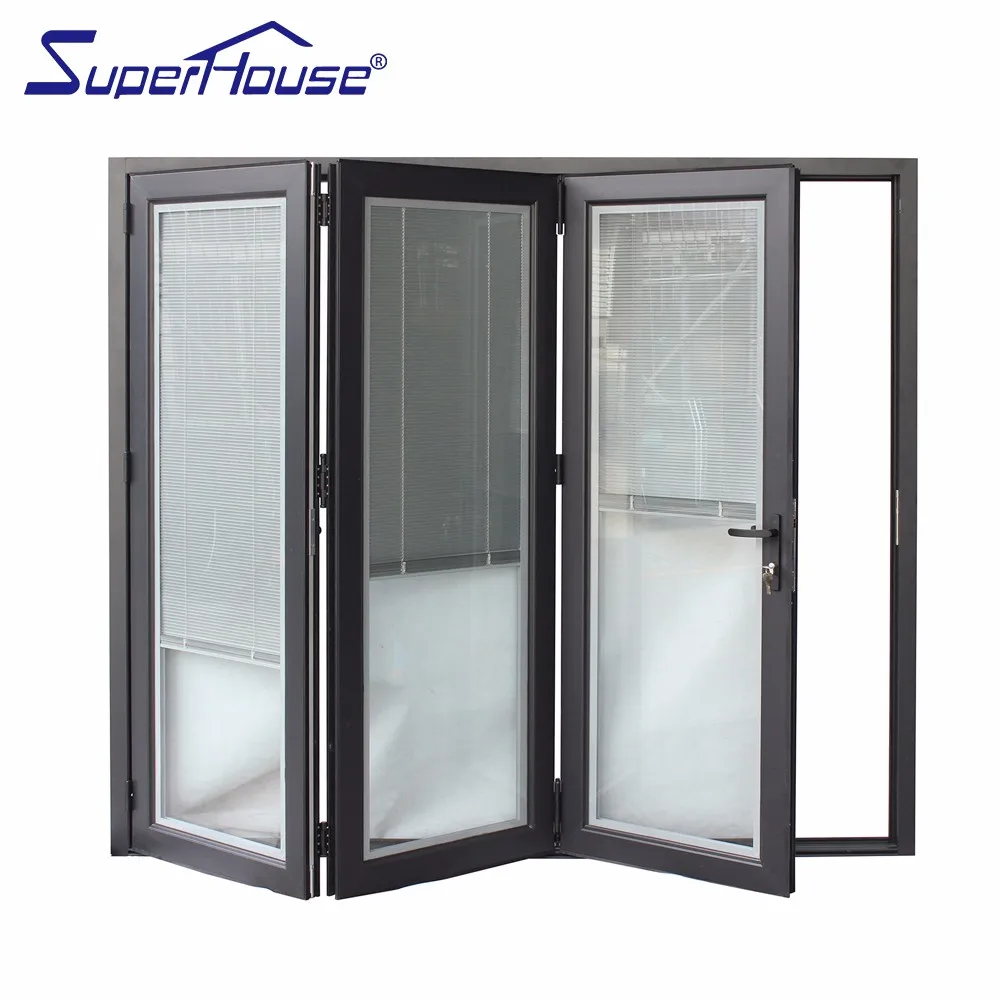

Australia Standard hot model double glass aluminum bifolding door

Series:
Superline thermal break system
Name/Model:
Australia Standard hot model double glass aluminum bifolding door
Standard/Certificate:
Comply with AS2047/CSA
Glass Standard:
Comply with AS2208/IGCC

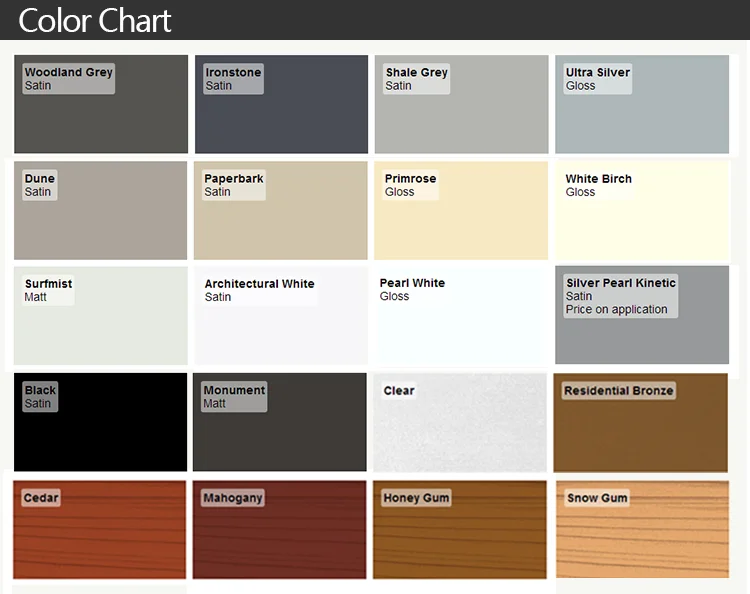

Color choice:
Standard:matt black;frosted black;white;Grey.
Customized:Brozen;sliver grey;clear anodized;wood color and some others.
Thermal Insulation:
U value from 1.5 to 2.0 W/M2k
Window Rating:
N6
Sample lead time
7 days
Water penetration:
450 pa
Ultimate strength
4500pa
Air infiltration
75/150
Extrusion alloys:
6063-T5 profile with 2.0-3.0 mm thickness for doors,1.4-2.0 for for windows
Hardware:
Australia doric;German brand with 10 year warranty
Surface treatment:
Powder coated meet AS 3715, Electrophoresis,PVDF,Anodizing,or wood color
Detailed Image

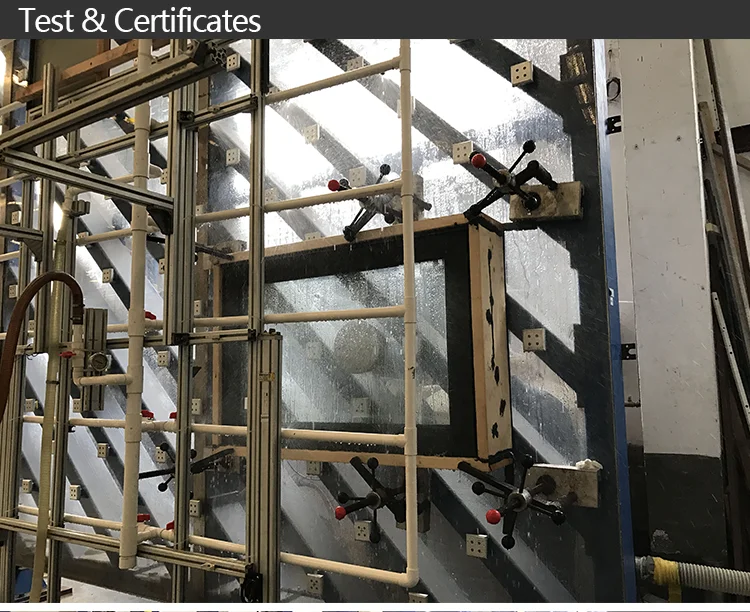

Certifications

1.Superhouse have been approved by Australian Window Association, SAI Global and TUV.

2.The member of Australian Window Association and guarantee you 10 years warranty.

3.Febricating aluminium windows & doors according to AS2047 standards.

4.The member of Window Energy Rating Scheme.

5.Glass meet AS2208 & ANSIZ97.1 standards.

6.Compaly with American NFRC and Miami Dade testing.

Installation


Packing & Delivery

All of our products are packed as following steps.

We use Iron Pallet instead of wooden pallet, stronger and more stable.

Step 1. Corners are protected by cardboard to avoid collision damage;

Step 2. Frames are wrapped with protective tapes to avoid scratching;

Step 3. Fix windows and doors on iron pallets by metal fixed strip;

Step 4. Reinforce windows & doors with plastic belts;

Step 5. PE films cover to keep the moisture away;

Step 6. Tie up iron pallets in container with durable plastic belts;

Step 7. Fill the space between pallets with air bags to insure the stable.

With full protection the our products can arrive at your job sites in safe and sound.

Shipping port: Shanghai port.

Delivery Time: 15-38 days sinve the order confirmation.

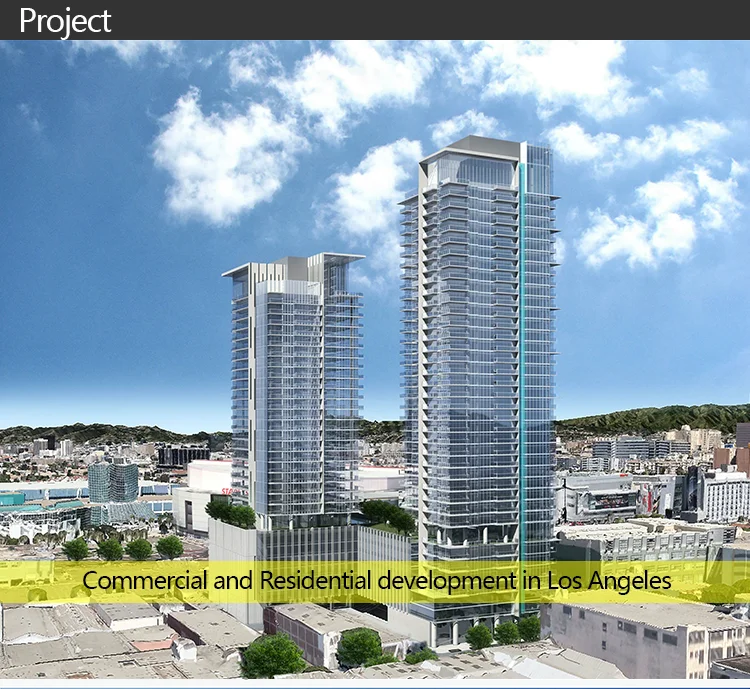

Project
About Superhouse

 Shanghai Superhouse Building Material Co., Ltd, with more than 10 years experience, is one of China leading suppliers of aluminium window and door systems, offering an extensive range of locally designed aluminium window and door suites for residential and commercial applications.


With strong technical force, advanced technology and well-equipped, a comprehensive suite of products, including Bi-fold doors and windows, Stacking and Sliding doors and windows, Aluminium hinged doors, Awning and Casement windows, Aluminium and Glass Louvres, Pool fencing, Balustrades&handrails, etc. are offered mainly for the Australia, USA, Canada.


Superhouse is one of the few that have the official approved certification for Australian standard AS2047. The license number is SMK40350. Currently, there are many suppliers in China that use fake credentials to pass themselves off as Asutralian approved. Please pay attention to the authenticity and make sure to check company credentials.
Please check the license NO. on http://register.saiglobal.com/default.aspx?stype=power to confirm the authenticity!

Superhouse new factory
We have bought land and are planning to set up our new factory. The new factory is 1.5 hours's drive from our existing factory and 6 times bigger than our shanghai's. The factory should be finished in 6 month since Jan. 2018 Year.
With area of 20000 square meters and 400 staff on production line, and expected 600000m2-- 800000m2 production capacity and, we are convinced that we can meet your demands and support you.

FAQ

Q:What is your main product?

A:We can supply the window system (including profile, hardware, accessories, glass) as well as the finished products ready for installation.

Q:How can I know your price?

A:The price is based on buyer's specific requirement, so please provide below information to help us quote exact price to you.

1) Shop drawing / window schedule to show the window dimensions, quantity and type;

2) Frame color;

3) Type of glass and thickness (single or double or laminated or others) and color (clear, tinted, reflective, Low-E or others, with Argon or without).

Q:What is the standard size of your windows and doors?
A:Our product is CUSTOMER MADE. We always manufacture windows and doors according to buyer's dimensions.

Q:What is your delivery time?
A: 38 days after deposit and drawing confirmed

Q:What is your standard color for aluminum frames?
A:Powder coating (Frost black and Sliver grey)

Q:What is your payment terms?
A:Normally, 30% - 50% of total amount by T/T as deposit and balance before delivery. Irrevocable L/C at sight is also acceptable.

Q:Will we need to install the glass (onsite glazed) or do your windows come with the glass installed?
A:We will install glass at factory based on windows/doors dimension to make sure they can be safe during transportation and if easy for our buyer to install the whole windows/doors. Onsite glazed are recommended for big sized products.

Q:What is your warranty ? What do we do in case of problems?
A:10 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation. 10 years warranty for German hardware. In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days.

Q:What kind of service will you provide?
A:We are able to provide the engineering as well as supervising service to guide installation our windows and doors.

Q:Are your products Certificated?Title goes here.
A:Yes, our products meet Australian standard for now and also we will make our product tested and certificated if you required

Q:Is there price difference between powder coating and anodizing ?
A: No

Q:What is spectrally selective glazing?
A:Coated or tinted glazing with optical properties that is transparent to some wavelengths of energy and reflective to others. Typical spectrally selective coatings are transparent to visible light and reflect short-wave and long-wave infrared radiation.

Welcome contact us for more details about aluminum bifolding door
